Process Signal calibrator

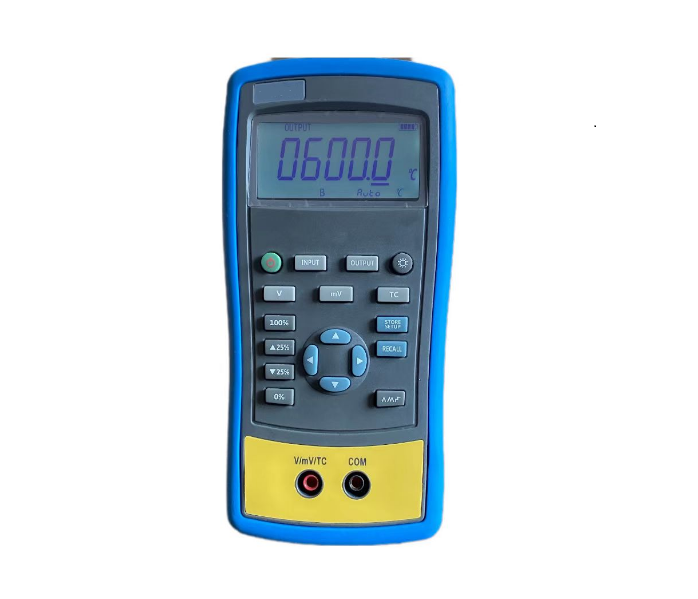

KT1814 Hand-held Thermocouple Calibrator

产品描述：KT1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.
在线订购

KT1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.

Feature
Accuracy: 0.05%F.S
Simulate thermocouple in the form of temperature
Measurement and output of thermocouple all supply auto and manual temperature compensation
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function.
LED with white backlight
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm

Technical Specification

Measure and Source Functions

Function	Measure	Source
DC V	0～30 V	Not available
DC mV	0～100 mV	0～100 mV
Thermocouple	E,J,K,T,B,R,S,N	E、J、K、T、B、R、S、N
Others	Stepping output, ramp, phase step output, user-defined range
