Process Signal calibrator

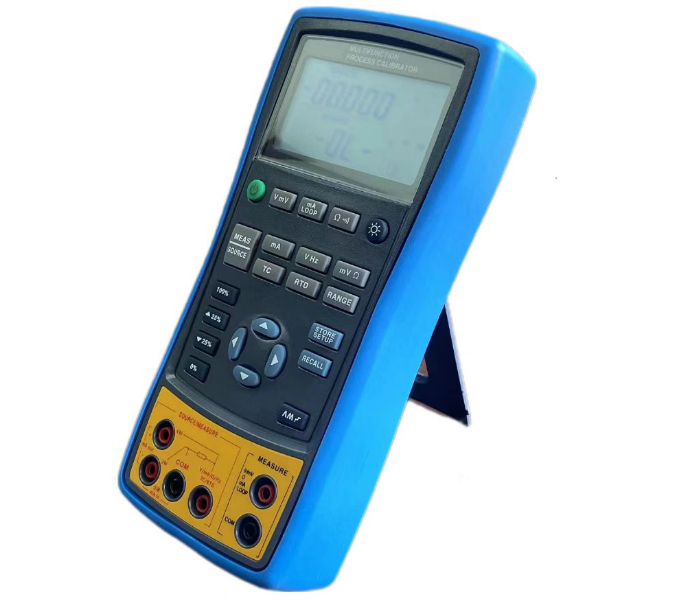

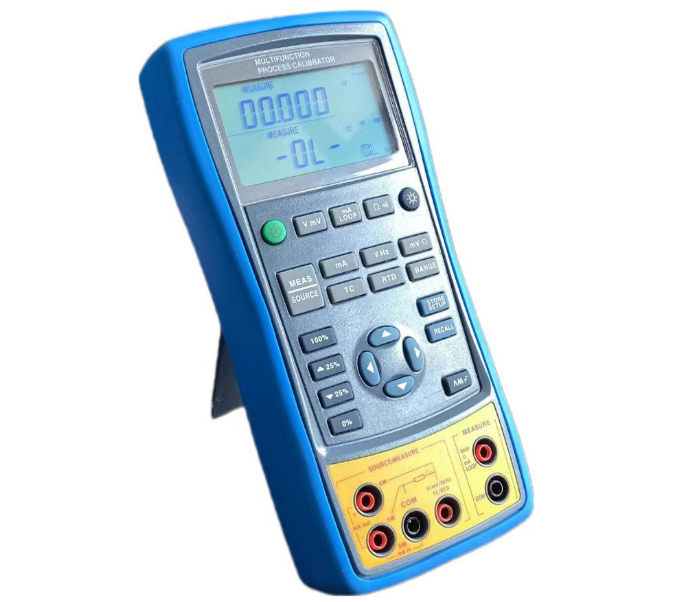

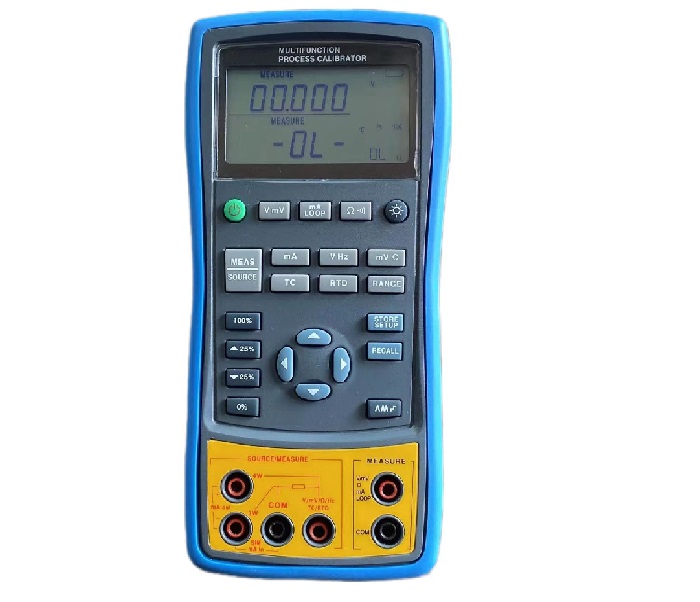

KT1825 Multifunction Process Calibrator

产品描述：Multifunction Process Calibrator temperature calibrator KT-1825multifunction calibration tools designed to calibrate almost anything. These calibration tools source and measure almost all process pa
在线订购

KT-1825multifunction calibration tools designed to calibrate almost anything. These calibration tools source and measure almost all process parameters.It can measure and source resistance, current, frequency, thermal resistance, thermocouple and these second instrument etc.

Features

● Accuracy: 0.05%Rdg,0.02%Rdg

●Calibrates a transmitter using the split-screen.

●The measure of thermocouple provides automatic reference junction

●Automatic and manual cold end temperature compensation for TC.

●Manual stepping and automatic stepping and ramping.

●Super-strong protection：The waterproof grade is IP67.

●Automatic protection against the signal terminals connect to the 220V.

●Support for PC communication

●Store environment temperature:(-20– 60)°C

●Relative humidity :0~ 90RH No condensation

●Weight：0.65Kg

●Size：200mm×96mm×47mmm

●Power supply: 6 R03-model rechargeable batteries or power adapter

● communication mode：RS232

Function	Measure	Source
DC V	0～50V (the upper display ± 30V)	0～10V
DC mV	0～24mA (the upper display ± 24mA)	0～24mA
Frequency	1.000Hz ～ 100.00kHz	0.00Hz～20.000kHz
Resistance	0～3200Ω	0～3200Ω
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
TC	E,J,K,T,B,R,S,N	E、J、K、T、B、R、S、N
Others	Stepping output, ramp, phase step output, user-defined range
