Process Signal calibrator

  • KT1815 Current and Voltage Calibrator
  • KT1815 Current and Voltage Calibrator
  • KT1815 Current and Voltage Calibrator
  • KT1815 Current and Voltage Calibrator
KT1815 Current and Voltage CalibratorKT1815 Current and Voltage CalibratorKT1815 Current and Voltage CalibratorKT1815 Current and Voltage Calibrator

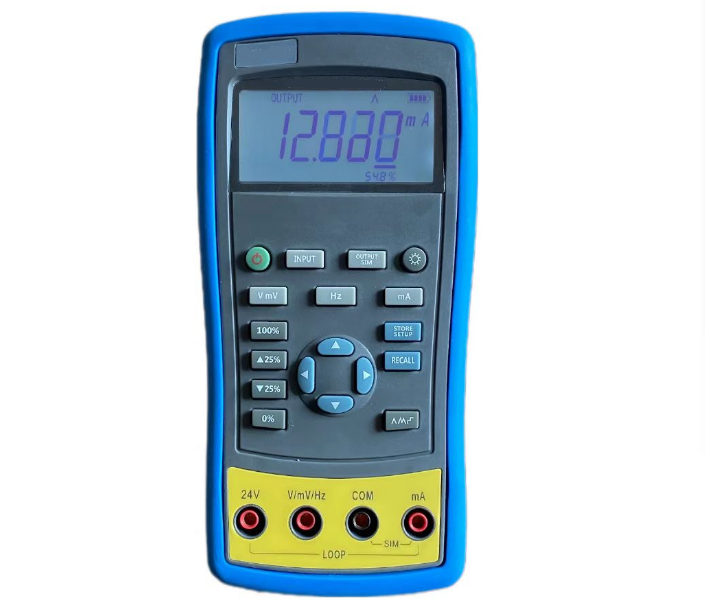

KT1815 Current and Voltage Calibrator

  • 产品描述:Current and Voltage Calibrator KT1815 Hand-held Current and Voltage Calibrator integrates measurement and output of V, mV, mA, Hz into one.
  • 在线订购
KT1815 Hand-held Current and Voltage Calibrator integrates measurement and output of V, mV, mA, Hz into one. High precision, high resolution and reliable. With big LED, the data could be showed more clearly. With adjustable backlight and auto power off function. Direct current or exchange current power supply make it convient to use.
Features
Accuracy: 0.05%F.S
Measure and source voltage, current (active or passive), mV and frequency.
May simulate two-wire channel transmitter.
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V voltage with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function.
Big LED with adjustable backlight and auto power off function.
Supply DC24V circuit power.

Weight : 0.35kg

Dimensions: 185mm×93mm×47mm

Technical Specification

Measure and Source Functions

Function

Measure

Source

DC V

0~30 V

0~10 V

DC mV

0~100 mV

0~100 mV

DC mA

0~24 mA

0~24 mA

Frequency

1.000Hz~99.999kHz

0.00Hz~20.000kHz

Others

24V power supply, Step, Ramp.
