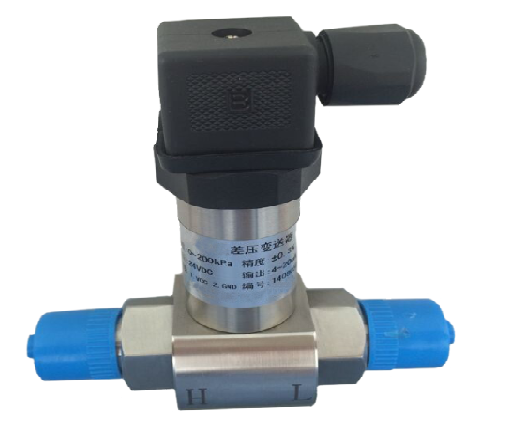

KDS602 differential pressure transmitter uses silicon differential pressure sensors with 316L stainless steel isolated diaphragm as measuring elements.
This product has widely been used for measure of differential pressure of pipeline fluids in petroleum industry, chemical industry, electric power hydrology etc & suitable for application in harsh environment and measurement with corrosive pressure media.
Medium: gas or liquid compatible to stainless steel
Pressure ranges: 0-35bar
Pressure type: differential (D)
Output signal: 4~20mA
Accuracy: 0.25%FS or 0.5%FS
Long term stability : <0.2%FS/year
Supply voltage: 24VDC
Operating temperature range: -30~+70℃
Storage temperature range: -40~+85℃
Process connection: G1/4 ,1/4’’NPT, or others
Material of pressure membrane: 316L
Dimension (Unit: mm) Electrical connection
Pin 1 |
+Excitation |
Pin 2 |
+output |
Pin 3 |
pending |
KDS602 differential pressure transmitter has two inlet port, one is “H” for high pressure & another is “L” for low pressure.In the installation process, prohibit leakage phenomenon, because it will reduce the accuracy of measurement.
