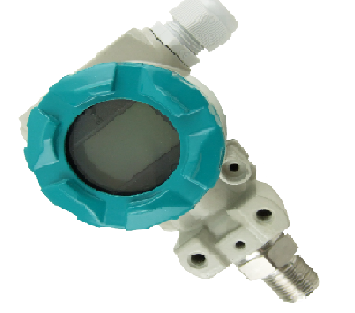

This pressure transmitter using imported pressure sensor, temperature compensation of laser resistor trimming by using computer, integrated wiring box design. With special terminal and digital display, installation, calibration repair are convenient. This series of products suitable for petroleum, chemical, metallurgy, electric power, water conservancy, scientific research, environmental protection and other various enterprises and institutions, to realize the measurement of fluid pressure and is suitable for various occasions all-weather environment and all kinds of corrosive fluid.
Ø Digital LCD display
Ø 4~20mA signal output
Ø high accuracy, long-term stability
Ø Intrinsically safe explosion-proof;
Ø High precision & stability
Ø IP65 protection
Ø Anti-corrosive, the anti-attrition, the anti-impact
Ø Flush membrane and the tantalum diaphragm option
Specifications
Measuring range |
-1~0~1000bar |
Overpressure |
≤150 %FS |
IP rating |
IP65 |
Power supply |
12~30Vdc |
Output signal |
4~20 mA |
Accuracy |
0.25%F.S |
Display |
5-digit LCD, 4-digit LED |
Long-term stability |
≤0.1%FS/year |
Media temperature |
-40~+150°C |
Environment temperature |
-30~+80°C |
Relative humidity |
≤90% |
Lead mode |
Connecting terminal |
Interface material |
Stainless steel |
If the media’temperature is more than 80℃,please choose the high temperature’accessories. |
Dimensions
Electrical wiring
The signal terminals are arranged in the electrical box independent cabin. In the wiring, wiring side can unscrew the table cover. Power supply is the signal line is connected to a transmitter, without additional wiring.
The signal line can be double strand. Electromagnetic interference in serious situations, we suggest that use the shielded wire and proper grounding. The signal line should not with other power line together through the metal tube or placed in the same slot, or near by power equipment. The threading hole should be sealed or blocked (sealant) to avoid electrical shell accumulation of moisture. If the threading hole is not sealed, then when the transmitter is installed, should make the threading holes down to exclude liquid.
Order Code :
Options guide KDS601 industrial pressure transmitter |
||
Thread connection |
G14 |
G1/4 |
G12 |
G1/2 |
|
M20 |
M20*1.5 or according clients’demand |
|
Display |
W |
Without display |
X |
LED Display |
|
Y |
LCD display |
|
Measure range |
(......) |
|
Output Signal |
I 4~20mA |
|
R RS485 |
||
H Hart |
