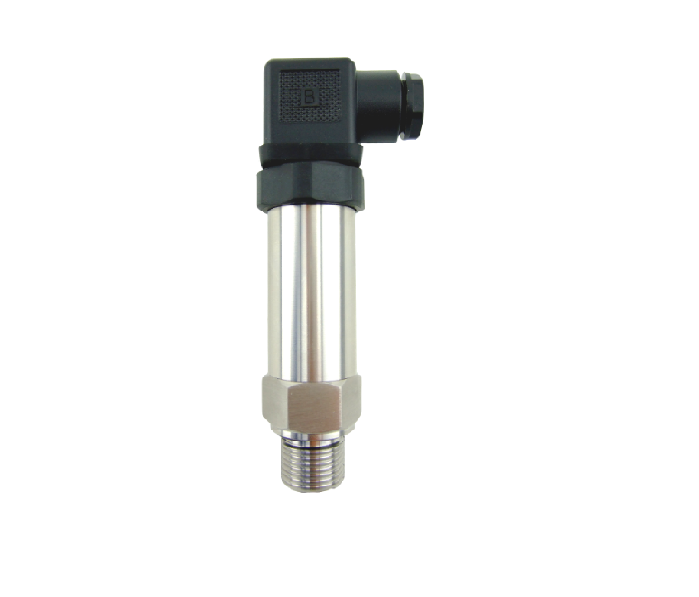

KDS600 pressure transmitter is designed for use in applications which deal with corrosive pressure media.
Through strict component making, semi-finished product and all-finished
product testing and aging, the transmitter is stable and reliable, having excellent
flexibility, sensitivity and diversity.
It is widely used for pressure measure and control of petroleum, chemi-industry,
metallurgy, power station and hydrology, etc.
Specification:
measuring media |
Liquid/gas |
|
||
Measuring range |
-1...0...1000bar |
|
||
Overpressure |
≤150%FS |
|
||
Pressure type |
Gauge pressure |
|
||
Power supply |
12~30Vdc |
|
||
Output signal |
4~20 mA |
|
||
Accuracy |
±0.25%FS |
|
||
Long-term stability |
≤0.1%FS/year |
|
||
Media temperature |
-40~+150°C |
|
||
Environment temperature |
-30~+80°C |
|
||
Process connection |
Bottom thread |
1/4”NPT male or others |
|
|
Protection |
IP rating |
IP 65 |
||
Housing material |
Stainless steel 304 |
|
|
|
If the media’temperature is more than 80℃,please choose the high temperature’accessories. |
