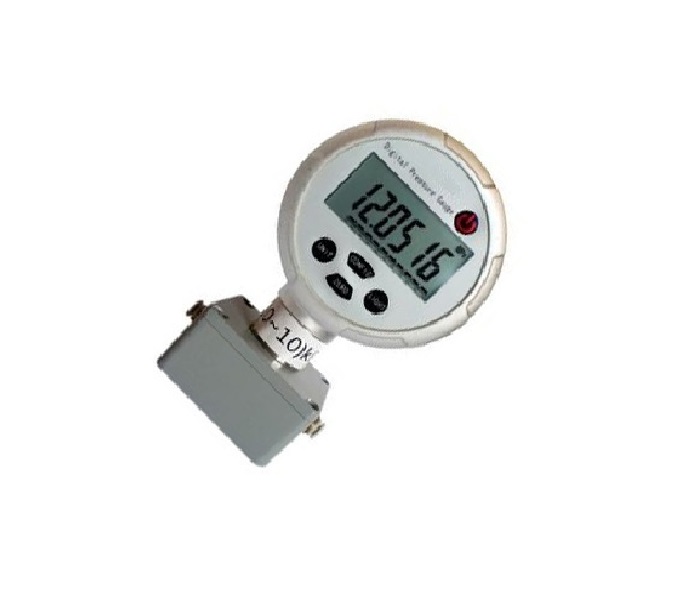

DPC103 Micro Pressure calibrator

Product description: DPC103 Micro Pressure calibrator
INQUIRY

product description:
DPC103 intelligent pressure calibrator is a single-range, HART protocol (optional), full-scale pressure measurement, high-precision DC current, voltage measurement and 24VDC power output output. It can be used to verify common miniature pressure gauges, differential pressure transmitters and real-time pressure measurement, and to debug HART smart pressure transmitters.
main application:
Verify smart HART type pressure (differential pressure) transmitter
Verify smart pressure (differential pressure) transmitter
Verify the normal pressure of the transmitter (differential pressure)
feature:
Built-in handheld communicator function can verify HART intelligent pressure transmitter
High precision, high reliability
Built-in pressure module and external intelligent digital pressure module
Two-point calibration, user-friendly operation
Data backup, powerful data correction
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
Electrical measurement indicators:

Measurement items	Range	Feature
Current	25.0000 mA	Accuary±（0.02%RD+0.003%FS）
Voltage	25.0000 V	Accuary±（0.02%RD+0.003%FS）
Convision	On/off	（1~12）V
Output	Range	Feature
Power Output	DC24	Max current :50mA, Overload protection current :120mA

Power configuration:
Power mode: internal battery power or dedicated adapter power
Battery working time: about 100 hours, correspondingly shortened when 24V is loaded
Battery charging time: about 3 hours
Other indicators:
Size: head Φ114mm×39mm, total length 180mm
Weight: 0.6 kg
Pressure port: M20×1.5
Communication interface: RS232
Ambient temperature: (-20~70)°C
Temperature compensation: (0~50)°C
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)°C
Differential pressure range selection table

Range	Type	Accuracy①	Accuracy②	Media
(0~60)Pa	D	1.6	--	③
(0~250)Pa	D	0.5	--	③
(0~1)kPa	D	0.1	--	③
(0~2)kPa	D	--	0.05	③
(0~5)kPa	D	--	0.05	③
(0~10)kPa	D	--	0.05	③

D = different pressures;
Guaranteed accuracy of temperature range: ①(20±5)℃,②(0～50)℃;
③Non-corrosive gas compatible with glass, ceramics, silicon, room temperature vulcanized silicon rubber, nickel, gold, aluminum and other materials
Compound pressure range selection table

Range	Type	Accuracy①	Accuracy②	Media
±60Pa	D	1.6	--	③
±250Pa	D	0.5	--	③
±1kPa	D	0.1	--	③
±2kPa	D	--	0.05	③
±5kPa	D	--	0.05	③
±10kPa	D	--	0.05	③
±16kPa	G	--	0.05	③
±25kPa	G	--	0.05	③
±40kPa	G	0.02	0.05	③
±60kPa	G	0.02	0.05	③
±100kPa	G	0.02	0.05	③
(-100~160)kPa	G	0.02	0.05	③
(-100~250)kPa	G	0.02	0.05	③

·G gauge pressure; D=different pressure;
· Guaranteed accuracy of temperature range: ①(20±5)℃,②(0～50)℃;
·③Non-corrosive gas compatible with glass, ceramics, silicon, room temperature vulcanized silicon rubber, nickel, gold, aluminum and other materials
