I. Overview

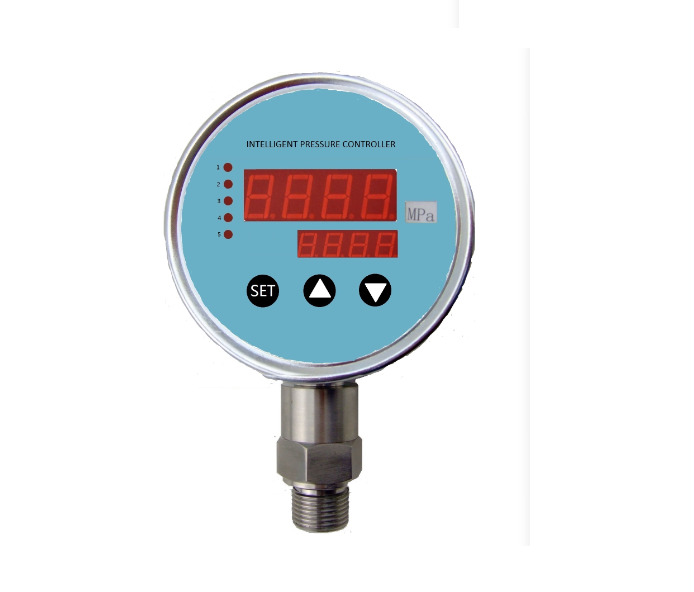

kTS528 Intelligent pressure controller is an intelligent digital display pressure measurement and control product integrating pressure measurement, display, output and control. The product has a full electronic structure. The front end uses an oil-filled piezoresistive pressure sensor with an isolation membrane. It is converted by high-precision A / D, processed by a microprocessor, displayed on site, and outputs one analog quantity and two switching quantities. The intelligent digital pressure controller is flexible to use, simple to operate, easy to debug, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries, on-site measurement display and control of the pressure of the fluid medium.
2. Features
◆ 100 standard instrument installation
◆ 4-digit LED digital tube display, no visual error.
◆ Five-way control point relay output 220V3A
◆ 4 ~ 20mA, RS485 standard signal output (optional)
◆ On-site control point setting.
◆ Power supply optional 24VDC 220VAC
3, technical parameters:
Range
-0.1-0-100MPa
Accuracy class
0.2%f.s
Overload pressure
200%
Pressure type
Gauge pressure
Stability
≤0.1% /year
Valtage
220VAC/24VDC
Display
LED
Display range
-1999~9999
Response time
<30ms
Ambient temperature
-20℃~70℃
Relative humidity
≤80%
Interface material
304 Stainless steel
4. Dimensions
5. Installation
5.1 Mechanical connection:
It can be directly installed on the hydraulic pipeline through the pressure pipe joint (M20 * 1.5) (other size joints can be specified when ordering). In critical applications (such as severe vibration or shock), the pressure pipe joint can be mechanically decoupled through a micro hose.
Note: When the range is less than 100KPa, it must be installed vertically.
5.2 Electrical connection
In order to prevent the influence of electromagnetic interference, the following matters should be noted:
● Line connection should be as short as possible
● Use shielded wire
● Try to avoid direct access to the wiring of user devices or electrical and electronic devices that cause interference
● If installing with micro hose, the shell must be grounded separately
6. Instructions for use:
1. The storage and use of the instrument is suitable in the environment where the ambient temperature is -20 ℃ ~ 70 ℃, and the humidity is less than 80%.
2. The instrument connector should be uniformly worn when connecting the pipeline.
3. When connecting the instrument to the power supply, refer to 5.2 Electrical Connection for operation. After confirming that the operation is correct, the power supply can be turned on for operation
7. Warranty
Under the condition of observing the usage and protection rules, the instrument is guaranteed for one year from the factory date
