I. Overview

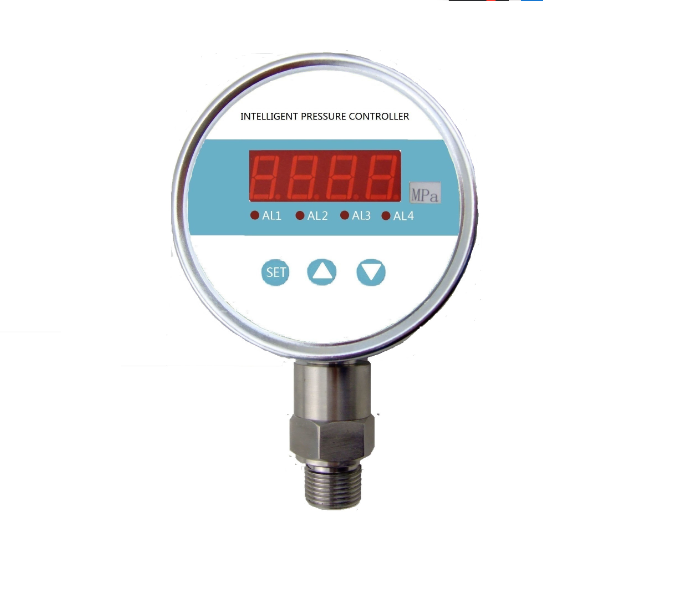

The intelligent digital pressure controller is flexible to use, simple to operate, safe and reliable. Widely used in hydropower, petroleum, chemical, machinery, hydraulic and other industries, on-site measurement display and control of the pressure of the fluid medium.
2. Features
◆ 100 standard instrument installation
◆ 4-digit LED display, no visual error
◆ On-site setting of control point
◆ Two-way control point relay output
◆ 4 ~ 20mA standard signal output (optional)
3, technical parameters:
Range
-0.1-0-100MPa
Accuracy class
0.2%f.s
Overload pressure
200%
Pressure type
Gauge pressure
Stability
≤0.1% /year
Valtage
24VDC
Display
LED
Display range
-1999~9999
Response time
<30ms
Ambient temperature
-20℃~70℃
Relative humidity
≤80%
Interface material
304 Stainless steel
4. Dimensions
5. Installation
5.1 Mechanical connection:
It can be directly installed on the hydraulic pipeline through the pressure pipe joint (M20 * 1.5) (other size joints can be specified when ordering). In critical applications (such as severe vibration or shock), the pressure pipe joint can be mechanically decoupled through a micro hose.
Note: When the range is less than 100KPa, it must be installed vertically.
5.2 Electrical connection
In order to prevent the influence of electromagnetic interference, the following matters should be noted:
● Line connection should be as short as possible
● Use shielded wire
● Try to avoid direct access to the wiring of user devices or electrical and electronic devices that cause interference
● If installing with micro hose, the shell must be grounded separately
6. Instructions for use:
The storage and use of the instrument is suitable in the environment where the ambient temperature is -20 ℃ ~ 70 ℃, and the humidity is less than 80%.
The instrument connector should be concentrically worn when connecting the pipeline.
When the instrument is connected to the power supply, refer to 5.2 Electrical Connection for operation.After confirming that the operation is correct, the power supply can be turned on for operation.
When disassembling the instrument, do not apply force to the instrument case.
7. Warranty
Under the condition of observing the usage and protection rules, the instrument is guaranteed for one year from the factory date
