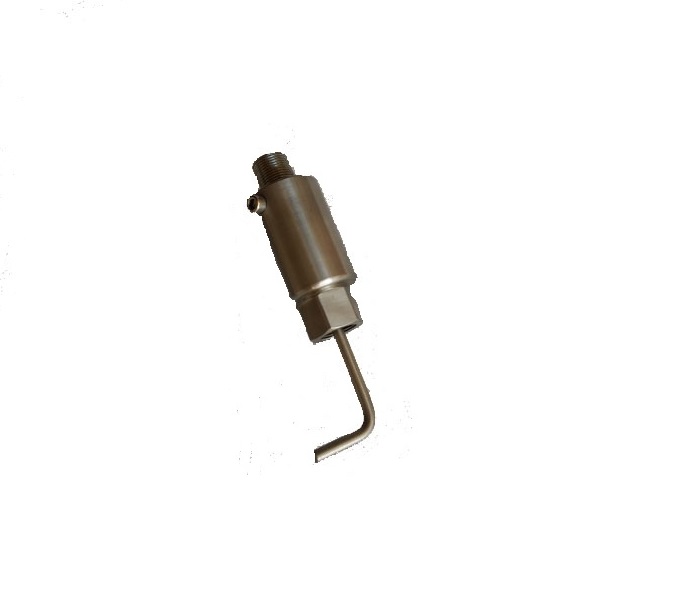

KDT406 is a filter used when detecting pressure gauges using liquid as a pressure transmitting medium to avoid contamination or damage to the testing equipment due to contamination of the instrument being inspected. Mainly filter out impurities in the pressure instrument lumen to prevent contamination of the pressure source
use:
When the liquid is used as the pressure transmitting medium to detect the pressure gauge, it acts as a filter to avoid contamination or damage to the testing equipment due to the contamination of the instrument being inspected;
Pressure range: (-0.1~60)MPa;
Filtration accuracy: 0.07mm;
Safety pressure: 82.7MPa;
Working temperature: (-10~50) °C;
Storage temperature: (-20~70) °C;
Volume: Φ28mm × 127mm;
Liquid filter connection method:
The pressure source end is M20×1.5 external thread, and the instrument end is M20×1.5 internal thread.
