Process Signal calibrator

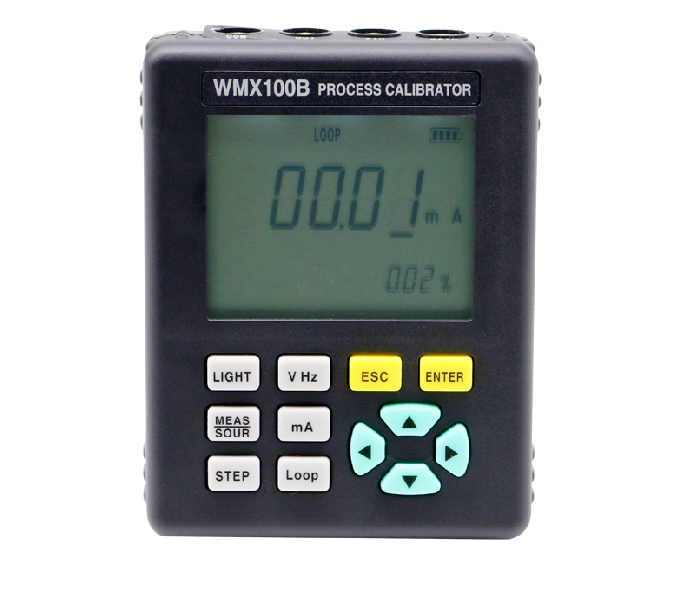

WMX100 Handheld process calibrator

Product description: This handheld current and voltage calibrator has function of a variety of signal measurements and output, including measurements of voltage, frequency, current, the loop current, and output of voltage
INQUIRY

This handheld current and voltage calibrator has function of a variety of signal measurements and output, including measurements of voltage, frequency, current, the loop current, and output of voltage, frequency, active and passive current output, etc., adopting LCD break code screen and function buttons. The operation is simple, easy-to-use, with high precision, long standby time and programmable automatic output function. Widely used in laboratory, industrial field PLC and process instrument, electric valve debugging.

Main function

Function	Measurements	Output	Remark
DC voltage	0～30 V	0～15V
DC current	0～24 mA	0～24mA
Loop current	0～25 mA	/	Isolate 24v power supply
Frequency	0～10kHz	0～10kHz
The passive current	/	0～24mA

Technical parameters

Function	Measurement Range	Resolution Ratio	Accuracy （Reading%+Counting）
DC voltage	Measurement 0～30V	0.01V	0.1%+4
DC voltage	Output 0～15V	0.01V	0.1%+4
DC current	Measurement 0～24 mA	0.01mA	0.1%+4
DC current	Output 0～24 mA	0.01mA	0.1%+4
Frequency	Measurement 0～10kHz	Four digits
Frequency	Output 0～10kHz	Four digits
Loop current	0～25 mA	0.01mA	0.1%+4
The passive current	0～24 mA	0.01mA	0.1%+4
24V loop current	24V	/	10%
