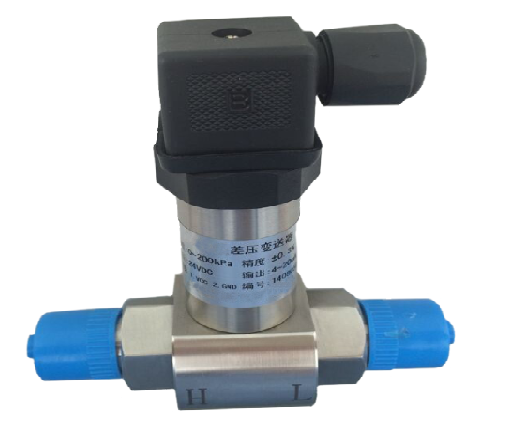

KDS602 differential pressure transmitter uses silicon differential pressure sensors with 316L stainless steel isolated diaphragm as measuring elements.

This product has widely been used for measure of differential pressure of pipeline fluids in petroleum industry, chemical industry, electric power hydrology etc & suitable for application in harsh environment and measurement with corrosive pressure media.

Medium: gas or liquid compatible to stainless steel

Pressure ranges: 0-35bar

Pressure type:      differential (D)

Output signal:      4~20mA

Accuracy: 0.25%FS or 0.5%FS

Long term stability        : <0.2%FS/year

Supply voltage: 24VDC

Operating temperature range: -30~+70℃

Storage temperature range: -40~+85℃

Process connection:      G1/4 ,1/4’’NPT, or others

Material of pressure membrane: 316L

Dimension （Unit: mm） Electrical connection

KDS602 differential pressure transmitter has two inlet port, one is “H” for high pressure & another is “L” for low pressure.In the installation process, prohibit leakage phenomenon, because it will reduce the accuracy of measurement.
