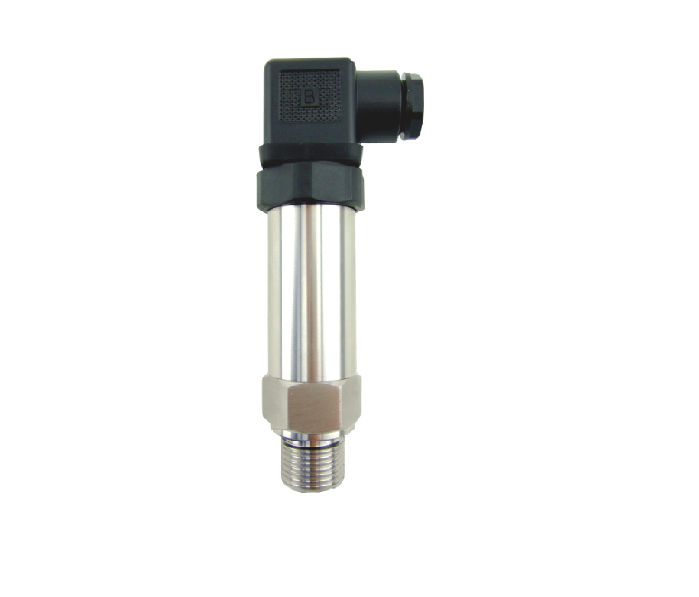

KDS600 General Pressure Transmitter

KDS600 pressure transmitter is designed for use in applications which deal with corrosive pressure media.

Through strict component making, semi-finished product and all-finished

product testing and aging, the transmitter is stable and reliable, having excellent

flexibility, sensitivity and diversity.

It is widely used for pressure measure and control of petroleum, chemi-industry,

metallurgy, power station and hydrology, etc.

Specification:

measuring media	Liquid/gas
Measuring range	-1...0...1000bar
Overpressure	≤150%FS
Pressure type	Gauge pressure
Power supply	12~30Vdc
Output signal	4~20 mA
Accuracy	±0.25%FS
Long-term stability	≤0.1%FS/year
Media temperature	-40~+150°C
Environment temperature	-30~+80°C
Process connection	Bottom thread	1/4”NPT male or others
Protection	IP rating		IP 65
Housing material	Stainless steel 304
If the media’temperature is more than 80℃,please choose the high temperature’accessories.
