DPC100H Digital Pressure Calibrator

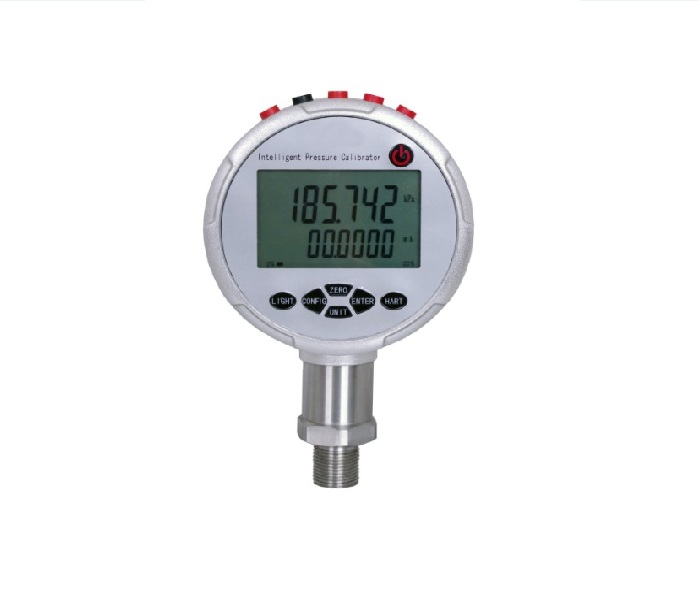

Product description: DPC100H Intelligent Pressure Calibrator
INQUIRY

DPC100H Intelligent Pressure Calibrators with HART protocol, a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to verify the ordinary (precision) pressure gauge, pressure transmitter, pressure regulating valves, pressure switches and pressure of real-time measurement, and can debug the HART smart pressure transmitter.

FEATURES

Pressure measurement
Accuracy: 0.025%FS,0.05%FS
Pressure ranges to 2,500 bar
Measure mA or V with 0.02% RD + 0.003%FS accuracy Power transmitters during test using 24V loop supply pressure switch test
Engineering unit selectalbe: Pa,kPa,MPa, psi, bar, mbar, mmH₂O, mmHg
Advanced temperature compensation
Large, easy to read display with 6-digit resolution Back lighted display
Rechargeable battery or AC adapter
Two-point correction, user’s friendly
Hart communication
NIM traceable calibration certificate (optional)

APPLICATIONS

Gauge calibration
Precision pressure measurement
Pressure transmitters calibration
Pressure switch testing
Safety relief valve testing
Pressure regulator testing
Intelligent pressure transmitter calibration

SPECIFICATIONS

Accuracy

DPC100H-02: 0.02% of full scale
DPC100H-05: 0.05% of full scale

Gauge types

Gauge pressure
Compound Pressure
Absolute pressure
Differential pressure

Conventional Pressure Range Selection

P/N	Pressure Range (bar)	Accuracy	Accuracy	Accuracy
DPC100H-1	(-1~0)bar	0.02, G	0.05, G	--
DPC100H-2	(0~0.16) bar	0.02, G	0.05, G
DPC100H-3	(0~0.25) bar	0.02, G	0.05, G
DPC100H-4	(0~0.4)bar	0.02, G	0.05, G	0.1A
DPC100H-5	(0~0.6) bar	0.02, G	0.05, G
DPC100H-6	(0~1)bar	0.02, G	0.05, G
DPC100H-7	(0~1.6)bar	0.02, G	0.05, G
DPC100H-8	(0~2.5) bar	0.02, G	0.05, G
DPC100H-9	(0~4) bar	0.02, G	0.05, G
DPC100H-10	(0~6) bar	0.02, G	0.05, G
DPC100H-11	(0~10) bar	0.02, SG	0.05, SG
DPC100H-12	(0~16) bar	0.02, SG	0.05, SG
DPC100H-13	(0~25) bar	0.02, SG	0.05, SG
DPC100H-14	(0~40)bar	0.02, SG	0.05, SG
DPC100H-15	(0~60)bar	0.02, SG	0.05, SG
DPC100H-16	(0~100)bar	0.02, SG	0.05, SG
DPC100H-17	(0~160 )bar	0.02, SG	0.05, SG
DPC100H-18	(0~250)bar	0.02, SG	0.05, SG
DPC100H-19	(0~400) bar	0.02, SG	0.05, SG
DPC100H-20	(0~600) bar	0.02, SG	0.05, SG
DPC100H-21	(0~700) bar	0.02, SG	0.05, SG
DPC100H-22	(0~1000) bar	--	--	0.1,SG
DPC100H-23	(0~1600) bar	--	--	0.1,SG
DPC100H-24	(0~2500) bar	--	--	0.1,SG
