*Performance characteristics

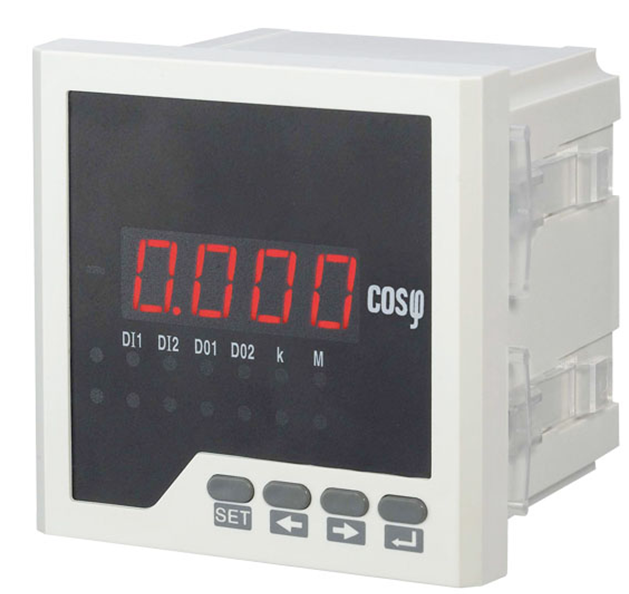

Measuring the power factor of a three-phase grid
Provide digital tube display, local data query
Programmable setting of current and voltage ratio
Support RS-485 communication, Modbus-RTU protocol
Support digital input, digital output, analog transmission output
Auxiliary power supply: AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC24V
A variety of shape options to meet the requirements of different cabinet electrical circuits
*Technical indicators
measurement accuracy
Power factor class 0.5
signal input
Wiring method single-phase, three-phase three-wire
Rated voltage AC 57.7V, AC 100V, AC 220V, AC 380V
Rated current AC 1A, AC 5A
Overload Voltage: 1.2 times (continuous), 2 times/1 second (instantaneous)
Current: 1.2 times (continuous), 10 times/5 seconds (instantaneous)
Power consumption Voltage: <1VA/phase, Current: <0.4VA/phase
Impedance Voltage: >300kΩ, Current: <20mΩ
Frequency 45~65Hz
Auxiliary power
Working range AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC24V
Power consumption <4VA
functional module
Communication interface 1 channel RS-485 communication, Modbus-RTU protocol
Baud rate: 1200~9600bps, default 2400 bps
Switch value input Support 4-way dry node input
Switch output Support 3-way relay output, capacity: AC 250V/5A, DC 30V/5A
Transmitting output Support 1 channel analog output: 0/4~20mA or 0~5/10V
environment
Working temperature -10℃~+55℃
Storage temperature -25℃~+70℃
Relative humidity ≤93%, no corrosive gas place
Altitude ≤2500m
Safety
Insulation resistance >100MΩ
AC withstand voltage AC 2KV
Electromagnetic Compatibility
Electrostatic discharge level 4
Electrical Fast Transient Burst Class 4
Surge (Shock) Level 4
Dimensions
Frame size (mm) 120×120; 80×80; 96×48; 96×96; 80×80; 48×48; 120x60; 160x80
Hole size (mm) 111×111; 76×76; 92×45; 92×92; 68×68; 45×45; 114x56; 152x76
