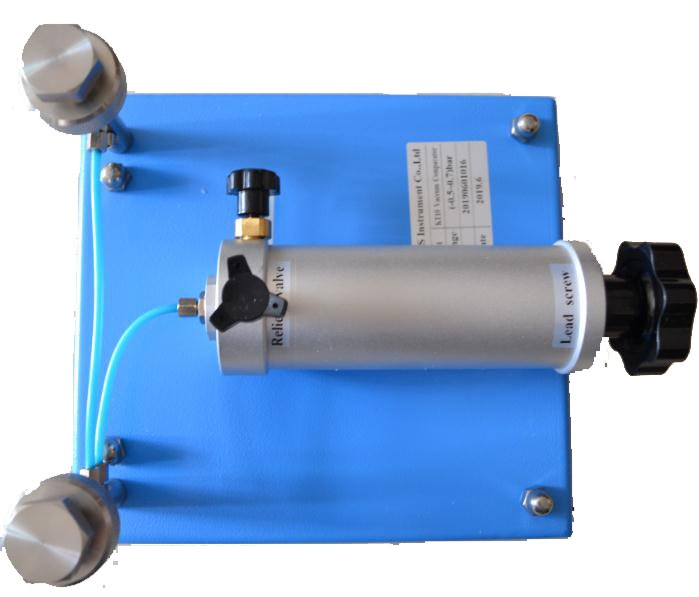

KT10 Micro-Pressure Comparator is a comprehensive product, negative pressure and positive pressure rolled into one. It features high sealed performance, stable compression, and simple operation and hence is suitable in the laboratory and fieldwork.

Technical Specification
◆ Generated pressure range:(-0.7~0.7)bar
◆ Working media:Air
◆ Adjust resolution:0.01mbar
◆ Material:  Body:transparent plexiglass
Output part:stainless steel
Seals:Buna-N
◆ Output interface connection:  M20×1.5Female
◆ Weight:3.55kg
◆ Dimensions:220×280×150 (mm)

Characteristics
◆ Adopts high quality and transparent plexiglass material.
◆ The whole structure is more intuitive and compact.
◆ Simple operation, convenient maintenance.
◆ Pressure resolution:0.01mbar

Function

It provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.it can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
