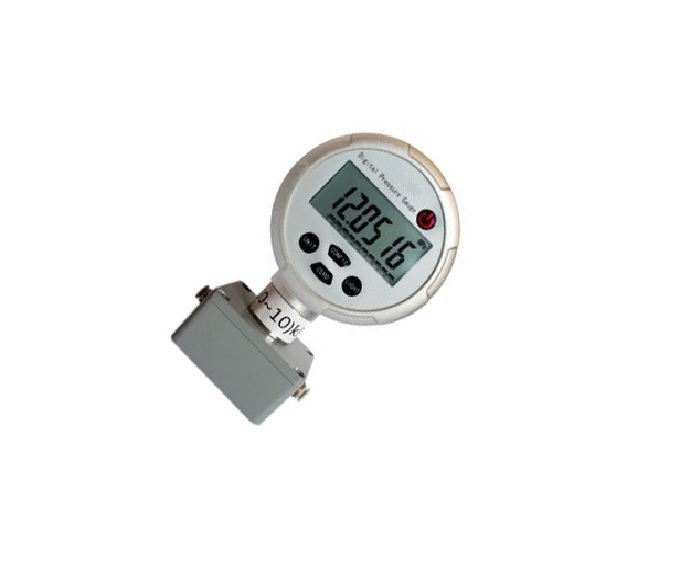

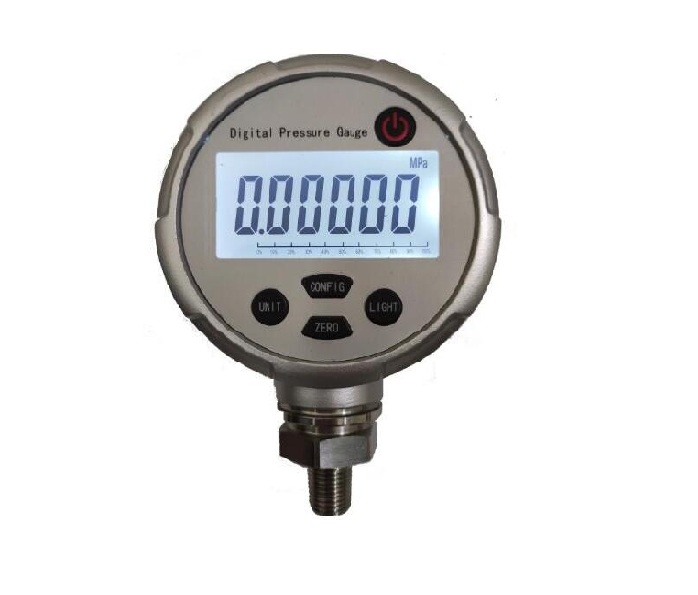

DPG100 Digital Pressure Gauge

产品描述：High Accurary Pressure Gauge，lab gauge,vacuum gauge DPG100 Digital Pressure Gauge is a microprocessor-controlled digital pressure testing gauge that combines precision and functionality in a compact
在线订购

DPG100 Digital Pressure Gauge is a microprocessor-controlled digital pressure testing gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPG100 Digital Pressure Gauge matches advanced silicon sensor technology with several convenient design features resulting in an accurate, versatile yet affordable digital test gauge. DPG100 Digital Pressure Gauge widely uses in oil&gas, power inustry, metrology body and so on. it provides a reliable and economic solution for a wide range of pressure measuring applications.

Application:

• Precision Pressure Measurement

• Field Gauge Calibration

• Other Pressure Instrument Calibration

Features:

• High Accuracy 0.02%F.S ,0.05%F.S,0.1%F.S

• Pressure range :-1-2500bar (see the range table)

• 0~50°CTemp Compensation

• Low Power Consumption

• Auto Peak Recording

• Pressure unit selectable : mmH₂O、mmHg、Pa、kPa、MPa、psi、bar、mbar、kgf/cm2

• Rugged aluminum housing

• Wetted part:316 stainless steel

• 6 bits display with white backlight

• Overpressure warning: The screen will display “Fail” if pressure over 110%F.S

Measurement Speed:

• Max: 3 readings per second (Default), lowest: 1 reading/10 seconds,

• Speed adjustable.

Environmental:

• Operating Range: (-20~70) °C

• Temp. Compensation: (0~50) °C

• Humidity: <95%

• Atmosphere Pressure: (86~106) kPa

• Storage Temp.: (-40~85) °C

Display: 4/5/6 Digit Backlit Display

Power Supply:Three AA alkaline batteries

Working Time: Reading/ Second

Test Speed 1reading/S 1reading/2S 1reading/5S 1reading/10S

Working Time 1 Year 2 Years 4 Years 8 Years

Other Parameters:

• Dimension: Head Ø100mm×37mm, Overall Height132mm

• Weight: Approx.0.45KG

• Pressure Connection: 1/4NPT,1/2NPT,G1/2 or M20×1.5

• Communication: RS232

Pressure range selectable table

Order No.	Pressure Range	Accuracy	Accuracy	Accuracy
DPG100-1	(-1~0)bar	0.02,G	0.05,G	0.1,G
DPG100-2	(0~0.16) bar	--	0.05,G	0.1,G
DPG100-3	(0~0.25) bar	--	0.05,G	0.1,G
DPG100-4	(0~0.4) bar	0.02,G	0.05,G	0.1,G
DPG100-5	(0~0.6)bar	0.02,G	0.05,G	0.1,G
DPG100-6	(0~1) bar	0.02,G	0.05,G	0.1,G
DPG100-7	(0~1.6) bar	0.02,G	0.05,G	0.1,G
DPG100-8	(0~2.5)bar	0.02,G	0.05,G	0.1,G
DPG100-9	(0~4) bar	0.02,G	0.05,G	0.1,G
DPG100-10	(0~6) bar	0.02,G	0.05,G	0.1,G
DPG100-11	(0~10) bar	0.02,G	0.05,G	0.1,G
DPG100-12	(0~16) bar	0.02,G	0.05,G	0.1,G
DPG100-13	(0~25) bar	0.02,G	0.05,G	0.1,G
DPG100-14	(0~40 )bar	0.02,G	0.05,G	0.1,G
DPG100-15	(0~60) bar	0.02,G	0.05,G	0.1,G
DPG100-16	(0~100) bar	0.02,G	0.05,G	0.1,SG
DPG100-17	(0~160 )bar	0.02,G	0.05,G	0.1,SG
DPG100-18	(0~250)bar	0.02,G	0.05,G	0.1,SG
DPG100-19	(0~400) bar	0.02,G	0.05,G	0.1,SG
DPG100-20	(0~600) bar	0.02,G	0.05,G	0.1,SG
DPG100-21	(0~700) bar	0.02,G	0.05,G	0.1,SG
DPG100-22	(0~1000) bar	--	0.05,G	0.1,SG
DPG100-23	(0~1600) bar	--	0.05,G	0.1,SG
DPG100-24	(0~2500) bar	--	0.05,G	0.1,SG
