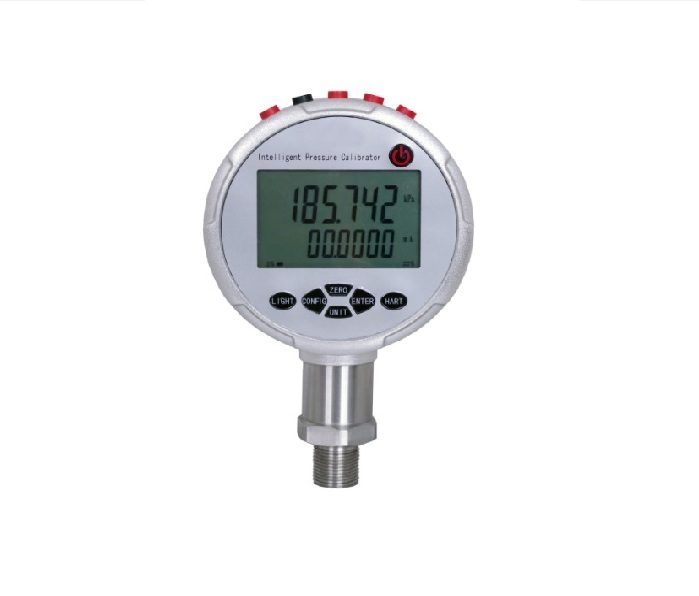

DPC100H Intelligent Pressure Calibrators with HART protocol, a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to verify the ordinary (precision) pressure gauge, pressure transmitter, pressure regulating valves, pressure switches and pressure of real-time measurement, and can debug the HART smart pressure transmitter.
Pressure measurement
Accuracy: 0.025%FS,0.05%FS
Conventional Pressure Range Selection
|
P/N |
Pressure Range (bar) |
Accuracy |
Accuracy |
Accuracy |
|
DPC100H-1 |
(-1~0)bar |
0.02, G |
0.05, G |
-- |
|
DPC100H-2 |
(0~0.16) bar |
0.02, G |
0.05, G |
|
|
DPC100H-3 |
(0~0.25) bar |
0.02, G |
0.05, G |
|
|
DPC100H-4 |
(0~0.4)bar |
0.02, G |
0.05, G |
0.1A |
|
DPC100H-5 |
(0~0.6) bar |
0.02, G |
0.05, G |
|
|
DPC100H-6 |
(0~1)bar |
0.02, G |
0.05, G |
|
|
DPC100H-7 |
(0~1.6)bar |
0.02, G |
0.05, G |
|
|
DPC100H-8 |
(0~2.5) bar |
0.02, G |
0.05, G |
|
|
DPC100H-9 |
(0~4) bar |
0.02, G |
0.05, G |
|
|
DPC100H-10 |
(0~6) bar |
0.02, G |
0.05, G |
|
|
DPC100H-11 |
(0~10) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-12 |
(0~16) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-13 |
(0~25) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-14 |
(0~40)bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-15 |
(0~60)bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-16 |
(0~100)bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-17 |
(0~160 )bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-18 |
(0~250)bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-19 |
(0~400) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-20 |
(0~600) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-21 |
(0~700) bar |
0.02, SG |
0.05, SG |
|
|
DPC100H-22 |
(0~1000) bar |
-- |
-- |
0.1,SG |
|
DPC100H-23 |
(0~1600) bar |
-- |
-- |
0.1,SG |
|
DPC100H-24 |
(0~2500) bar |
-- |
-- |
0.1,SG |
